2.83L/min Airborne Particle Counter Six Particle - Size Channels Multiple Print Mode

Name: 283Lmin Airborne Particle Counter Six Particle Size Channels Multiple Print Mode
Brand: Indair
Price: 1 USD

Brand Name : Indair

Model Number : CLJ-BII(D)

Certification : ISO

Place of Origin : China

MOQ : 1

Price : negotiable

Supply Ability : 200 UNIT PER DAY

Packaging Details : carton with plastic bag

Flow rate : 0.1 cfm (2.83 lpm)

Sensitivity : 0.3μm

Self Clean Time : ≤20min

Weight : 5.5 kg

Environment Operating : Temperature 10~35,Relative Humidity ≤75%

Data Calculation : Federal Standard 209E Calculation

Contact Now

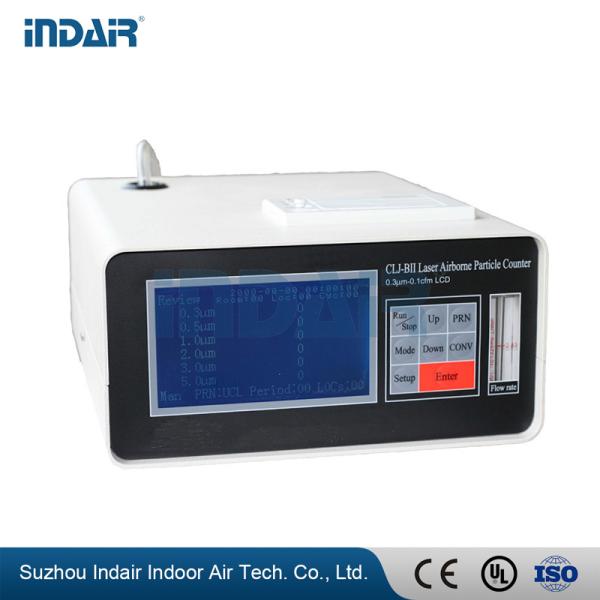

2.83L/min Airborne Particle Counter CLJ-BII(LCD) for clean room with Large flow rate

Principle:
The particle counter uses a laser light source and collection optics for particle detection. Particles scatter light from the light source in the direction of the collection optics. The collection optics focuses the light on a photoelectric cell that converts the bursts of light into electrical pulses. The pulse height is a measure of particle size. Pulses are counted and their intensity is measured for particle sizing. Results are displayed as particle count in the specified size channel.

Features:
1. 0.1cfm (2.83lpm) flow rate;
2. Large LCD display;
3. 2 counting modes;
4. Six particle-size channels (0.3, 0.5, 1.0, 2.0, 3.0, 5.0µm);
5. Date and time display;
6. Federal Standard 209E Calculation ;
7. Multiple print-mode;
8. Data conversion (cu.ft. and cbm);
9. Data storage.

Parameters:

Model	CLJ-BII(LCD)
Flow rate	0.1 cfm (2.83 lpm)
Sensitivity	0.3µm
Display	LCD
Self Clean Time	≤20min
Operating Time	8h
Output	Built-in Printer
Environment Operating	Temperature 10~35,Relative Humidity ≤75%
Power Supply	220V±10%,50Hz±2Hz
Size Channel	0.3,0.5,1,2,3,5(µm)
Sample Period	1min~10min
Clock	Date and Time
Counts Data	Total Counts, Counts/ft3 and Counts/m3
Data Calculation	Federal Standard 209E Calculation
Light source	Laser diode (30,000 hours mean time between failure)
Power Rating	35W
Dimension	22531203300(mm)
Weight	5.5Kg
